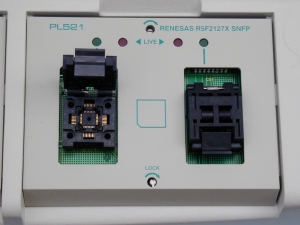

PL521 MODULE
The PL521 module has two high quality QFP ZIF sockets for programming flash micro controllers
in the R5F2127X family. The user can program or erase the user and / or data flash.
Devices can be automatically secured after successful programming.
The fxRAPIDO can program and verify up to four R5F21275 parts in about 6 seconds.
The M9000 takes about 24 seconds.
It has two high quality clamshell QFP sockets for the 32 pin SNFP package.
PROGRAMMER RAM CONFIGURATION
The ram size of the programmer does not matter.
TYPICAL MICROCONTROLLERS
R5F21272SNFP, R5F21274SNFP, R5F21275SNFP and R5F21276SNFP.
